Key Specification

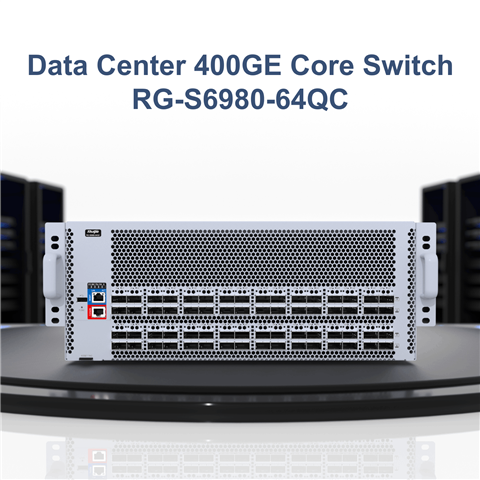

RG-S6980-64QC – 64-Port 400GE Data Center Core Switch, 4 RU
Ports | Fixed 64 × 400GE ports (QSFP-DD) |
---|---|
Packet forwarding rate | 10300 Mpps |
Maximum Power Consumption | Max: 2400 W Typical: 1760 W Static: 500 W |
Switching capacity | 51.2 Tbps |
Operating Humidity | 10% RH to 90% RH (Non-condensing) |
---|---|
Dimensions (W × D × H) | 442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in., 4 RU) |
Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
Expansion Modules | Four power supply module slots Eight fan module slots |
